Scheda tecnica
NP

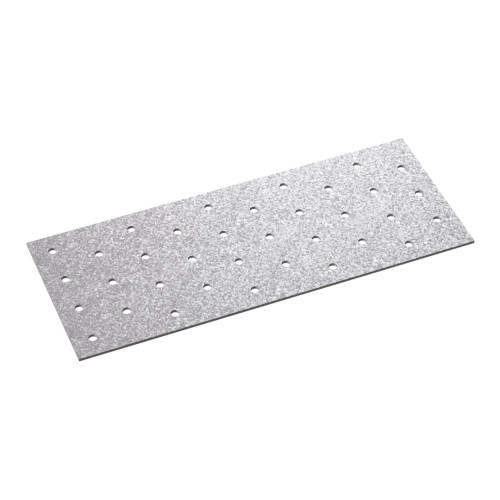

Piastra di fissaggio perforata

Le piastre forate vengono utilizzate per collegare tra loro due o più elementi in legno. Sono disponibili in varie dimensioni.

Caratteristiche prodotto

Materiale

  • Acciaio zincato S250GD + Z275 secondo EN 10346.

Vantaggi

  • Altamente versatile.
  • Può essere piegato in loco.

Campi di impiego

Applicazioni

  • Elemento di supporto: legno massiccio, legno lamellare, legno composito, ecc.
  • Elemento secondario: legno massiccio, legno lamellare, legno composito, capriate, profili, ecc.

Utilizzo

  • Collegamento pilastro/trave
  • Giunzione
  • Riparazioni
  • Assemblaggi che richiedono una piegatura speciale in cantiere, ecc.
NP hulplade 1.jpg
NP
NP

Dati tecnici

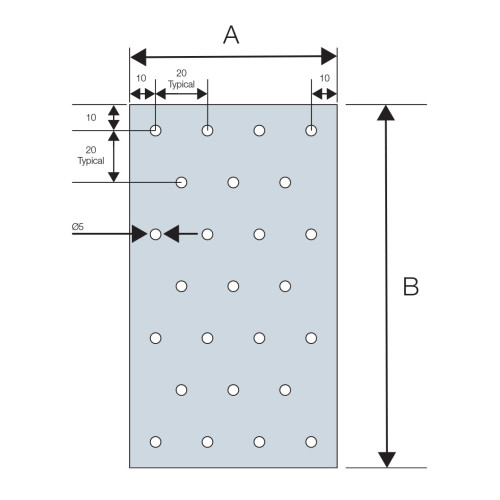

Dimensioni e Capacità Caratteristiche

NP hulplade 1.jpg
C_NP_Load direction F1_Ill_Instld_EU_CY.jpg
Dimensioni e Capacità Caratteristiche

Con: n: numero di chiodi Rlat,k : Capacità di taglio del fissaggio
Codici NOBB nr. DB nr. Dimensioni [mm] Fori 1 piastra al taglio [kN]
A B t Q.tà Ø R1.k
NP15/40/120 41711615 1267914 40 120 1.5 9 Ø5 min (n x Rlat,k ; 13.4/kmod)
NP15/40/160 41711626 1267920 40 160 1.5 12 Ø5 min (n x Rlat,k ; 13.4/kmod)
NP15/40/360 21217591 5653456 40 360 1.5 27 Ø5 min (n x Rlat,k ; 13.4/kmod)
NP15/50/200 41711634 1267926 50 200 1.5 20 Ø5 min (n x Rlat,k ; 17.8/kmod)
NP15/60/140 21218037 3779279 60 140 1.5 18 Ø5 min (n x Rlat,k ; 20/kmod)
NP15/60/160 21217617 5653464 60 160 1.5 20 Ø5 min (n x Rlat,k ; 20/kmod)
NP15/60/180 21218045 3779287 60 180 1.5 23 Ø5 min (n x Rlat,k ; 20/kmod)
NP15/60/200 21217658 5653498 60 200 1.5 25 Ø5 min (n x Rlat,k ; 20/kmod)
NP15/60/220 21217625 5653472 60 220 1.5 28 Ø5 min (n x Rlat,k ; 20/kmod)
NP15/60/240 41863666 1280559 60 240 1.5 30 Ø5 min (n x Rlat,k ; 20/kmod)
NP15/60/300 21217682 5653522 60 300 1.5 38 Ø5 min (n x Rlat,k ; 20/kmod)
NP15/60/340 21217641 5653480 60 340 1.5 43 Ø5 min (n x Rlat,k ; 20/kmod)
NP15/60/420 21217666 5653506 60 420 1.5 53 Ø5 min (n x Rlat,k ; 20/kmod)
NP15/60/500 21217674 5653514 60 500 1.5 63 Ø5 min (n x Rlat,k ; 20/kmod)
NP15/80/100 21217708 5653605 80 100 1.5 18 Ø5 min (n x Rlat,k ; 26.7/kmod)
NP15/80/140 21593918 8977811 80 140 1.5 25 Ø5 min (n x Rlat,k ; 26.7/kmod)
NP15/80/180 21217955 5653530 80 180 1.5 32 Ø5 min (n x Rlat,k ; 26.7/kmod)
NP15/80/200 41711653 1267928 80 200 1.5 35 Ø5 min (n x Rlat,k ; 26.7/kmod)
NP15/80/220 21218052 3779139 80 220 1.5 39 Ø5 min (n x Rlat,k ; 26.7/kmod)
NP15/80/240 21218060 1644095 80 240 1.5 42 Ø5 min (n x Rlat,k ; 26.7/kmod)
NP15/80/260 43145003 1392639 80 260 1.5 46 Ø5 min (n x Rlat,k ; 26.7/kmod)
NP15/80/280 21217732 5653613 80 280 1.5 49 Ø5 min (n x Rlat,k ; 26.7/kmod)
NP15/80/300 21593926 8977829 80 300 1.5 53 Ø5 min (n x Rlat,k ; 26.7/kmod)
NP15/80/340 21217757 5653548 80 340 1.5 60 Ø5 min (n x Rlat,k ; 26.7/kmod)
NP15/80/380 21217765 5653621 80 380 1.5 67 Ø5 min (n x Rlat,k ; 26.7/kmod)
NP15/80/420 21217773 5653639 80 420 1.5 74 Ø5 min (n x Rlat,k ; 26.7/kmod)
NP15/80/500 21217781 2686970 80 500 1.5 88 Ø5 min (n x Rlat,k ; 26.7/kmod)
NP15/100/140 21217807 5653654 100 140 1.5 32 Ø5 min (n x Rlat,k ; 33.4/kmod)
NP15/100/180 43139664 1392235 100 180 1.5 41 Ø5 min (n x Rlat,k ; 33.4/kmod)
NP15/100/200 41738756 1267931 100 200 1.5 45 Ø5 min (n x Rlat,k ; 33.4/kmod)
NP15/100/220 21218078 3779147 100 220 1.5 50 Ø5 min (n x Rlat,k ; 33.4/kmod)
NP15/100/240 21218086 1644103 100 240 1.5 54 Ø5 min (n x Rlat,k ; 33.4/kmod)
NP15/100/300 21593934 8977837 100 300 1.5 68 Ø5 min (n x Rlat,k ; 33.4/kmod)
NP15/100/340 21217856 5653688 100 340 1.5 77 Ø5 min (n x Rlat,k ; 33.4/kmod)
NP15/100/380 21593942 8977845 100 380 1.5 86 Ø5 min (n x Rlat,k ; 40.1/kmod)
NP15/120/160 21217849 5653662 120 160 1.5 44 Ø5 min (n x Rlat,k ; 40.1/kmod)
NP15/120/220 21218094 1644111 120 220 1.5 61 Ø5 min (n x Rlat,k ; 40.1/kmod)
NP15/120/240 41738760 1267992 120 240 1.5 66 Ø5 min (n x Rlat,k ; 40.1/kmod)
NP15/120/260 24176091 5768967 120 260 1.5 72 Ø5 min (n x Rlat,k ; 40.1/kmod)
NP15/120/300 41738775 1267998 120 300 1.5 83 Ø5 min (n x Rlat,k ; 40.1/kmod)
NP15/120/340 43139672 1392236 120 340 1.5 94 Ø5 min (n x Rlat,k ; 40.1/kmod)
NP15/120/380 43139698 1392237 120 380 1.5 105 Ø5 min (n x Rlat,k ; 40.1/kmod)
NP15/140/140 43139717 1392239 140 140 1.5 46 Ø5 min (n x Rlat,k ; 46.8/kmod)
NP15/140/180 43139721 1392240 140 180 1.5 59 Ø5 min (n x Rlat,k ; 46.8/kmod)
NP15/140/200 21217880 5653704 140 200 1.5 65 Ø5 min (n x Rlat,k ; 46.8/kmod)
NP15/140/220 43139740 1392241 140 220 1.5 72 Ø5 min (n x Rlat,k ; 46.8/kmod)
NP15/140/240 21593959 8977852 140 240 1.5 78 Ø5 min (n x Rlat,k ; 46.8/kmod)
NP15/140/260 21218003 5653738 140 260 1.5 85 Ø5 min (n x Rlat,k ; 46.8/kmod)
NP15/140/300 21217906 5650502 140 300 1.5 98 Ø5 min (n x Rlat,k ; 46.8/kmod)
NP15/140/380 43139823 1392296 140 380 1.5 124 Ø5 min (n x Rlat,k ; 46.8/kmod)
NP15/140/420 43139838 1392298 140 420 1.5 137 Ø5 min (n x Rlat,k ; 46.8/kmod)
NP15/160/180 21593967 8977860 160 180 1.5 68 Ø5 min (n x Rlat,k ; 53.5/kmod)
NP15/160/220 21217922 5653712 160 220 1.5 83 Ø5 min (n x Rlat,k ; 53.5/kmod)
NP15/160/240 21593975 8977878 160 240 1.5 90 Ø5 min (n x Rlat,k ; 53.5/kmod)
NP15/160/260 21217948 1921394 160 260 1.5 98 Ø5 min (n x Rlat,k ; 53.5/kmod)
NP15/160/340 21218029 2686897 160 340 1.5 128 Ø5 min (n x Rlat,k ; 53.5/kmod)
NP15/160/380 43139842 1392300 160 380 1.5 143 Ø5 min (n x Rlat,k ; 53.5/kmod)
NP15/160/400 41738786 1268000 160 400 1.5 150 Ø5 min (n x Rlat,k ; 53.5/kmod)
NP15/160/420 43139857 1392308 160 420 1.5 158 Ø5 min (n x Rlat,k ; 53.5/kmod)
NP15/180/180 21593983 8977886 180 180 1.5 77 Ø5 min (n x Rlat,k ; 60.1/kmod)
NP15/180/220 21217971 5650510 180 220 1.5 94 Ø5 min (n x Rlat,k ; 60.1/kmod)
NP15/200/220 21217989 2686996 200 220 1.5 105 Ø5 min (n x Rlat,k ; 66.8/kmod)
NP15/200/260 43139876 1392310 200 260 1.5 124 Ø5 min (n x Rlat,k ; 66.8/kmod)
NP15/220/220 43139880 1392312 220 220 1.5 116 Ø5 min (n x Rlat,k ; 73.5/kmod)
NP15/220/260 43139906 1392313 220 260 1.5 137 Ø5 min (n x Rlat,k ; 73.5/kmod)
NP15/220/300 43139925 1392315 220 300 1.5 158 Ø5 min (n x Rlat,k ; 73.5/kmod)
NP15/240/180 43139933 1393504 240 180 1.5 104 Ø5 min (n x Rlat,k ; 80.2/kmod)
NP15/240/220 43141416 1392330 240 220 1.5 127 Ø5 min (n x Rlat,k ; 80.2/kmod)
NP15/240/260 43141904 1392331 240 260 1.5 150 Ø5 min (n x Rlat,k ; 80.2/kmod)
NP15/240/300 43144935 1392332 240 300 1.5 173 Ø5 min (n x Rlat,k ; 80.2/kmod)
NP15/260/260 43144946 1392623 260 260 1.5 163 Ø5 min (n x Rlat,k ; 86.9/kmod)
NP15/280/220 43144965 1392627 280 220 1.5 149 Ø5 min (n x Rlat,k ; 93.6/kmod)
NP15/280/260 43144973 1392635 280 260 1.5 173 Ø5 min (n x Rlat,k ; 93.6/kmod)
NP15/280/300 43144984 1392638 280 300 1.5 203 Ø5 min (n x Rlat,k ; 93.6/kmod)
NP15/320/140 21218011 5653746 320 140 1.5 109 Ø5 min (n x Rlat,k ; 106.9/kmod)
NP20/40/120 21218342 3779154 40 120 2 9 Ø5 min (n x Rlat,k ; 17.8/kmod)
NP20/40/160 21594007 8977902 40 160 2 12 Ø5 min (n x Rlat,k ; 17.8/kmod)
NP20/40/200 - - 40 200 2 15 Ø5 min (n x Rlat,k ; 17.8/kmod)
NP20/50/200 21218359 8256240 50 200 2 20 Ø5 min (n x Rlat,k ; 23.8/kmod)
NP20/60/140 21594023 8977910 60 140 2 18 Ø5 min (n x Rlat,k ; 26.7/kmod)
NP20/60/160 - - 60 160 2 20 Ø5 min (n x Rlat,k ; 26.7/kmod)
NP20/60/200 21594114 8977928 60 200 2 25 Ø5 min (n x Rlat,k ; 26.7/kmod)
NP20/60/240 21218367 8258154 60 240 2 30 Ø5 min (n x Rlat,k ; 26.7/kmod)
NP20/80/160 - - 80 160 2 28 Ø5 min (n x Rlat,k ; 35.6/kmod)
NP20/80/200 21594031 8977936 80 200 2 35 Ø5 min (n x Rlat,k ; 35.6/kmod)
NP20/80/220 - - 80 220 2 39 Ø5 min (n x Rlat,k ; 35.6/kmod)
NP20/80/240 21218185 5650346 80 240 2 42 Ø5 min (n x Rlat,k ; 35.6/kmod)
NP20/80/300 21594049 8977944 80 300 2 53 Ø5 min (n x Rlat,k ; 35.6/kmod)
NP20/100/140 21218201 7742414 100 140 2 32 Ø5 min (n x Rlat,k ; 44.6/kmod)
NP20/100/160 - - 100 160 2 36 Ø5 min (n x Rlat,k ; 44.6/kmod)
NP20/100/200 21594056 8977951 100 200 2 45 Ø5 min (n x Rlat,k ; 44.6/kmod)
NP20/100/240 21218227 5650429 100 240 2 54 Ø5 min (n x Rlat,k ; 44.6/kmod)
NP20/100/260 21218235 5653779 100 260 2 59 Ø5 min (n x Rlat,k ; 44.6/kmod)
NP20/100/300 21594064 8977969 100 300 2 68 Ø5 min (n x Rlat,k ; 44.6/kmod)
NP20/100/400 21218250 2184331 100 400 2 89 Ø5 min (n x Rlat,k ; 44.6/kmod)
NP20/100/500 21218268 2184349 100 500 2 112 Ø5 min (n x Rlat,k ; 44.6/kmod)
NP20/120/160 - - 120 160 2 44 Ø5 min (n x Rlat,k ; 53.5/kmod)
NP20/120/200 21218276 7742422 120 200 2 55 Ø5 min (n x Rlat,k ; 53.5/kmod)
NP20/120/240 21594072 8977977 120 240 2 66 Ø5 min (n x Rlat,k ; 53.5/kmod)
NP20/120/260 21218292 5653787 120 260 2 72 Ø5 min (n x Rlat,k ; 53.5/kmod)
NP20/120/300 21594080 8977985 120 300 2 83 Ø5 min (n x Rlat,k ; 53.5/kmod)
NP20/120/400 24176158 5018533 120 400 2 110 Ø5 min (n x Rlat,k ; 53.5/kmod)
NP20/140/200 - - 140 200 2 65 Ø5 min (n x Rlat,k ; 62.4/kmod)
NP20/140/240 - - 140 240 2 78 Ø5 min (n x Rlat,k ; 62.4/kmod)
NP20/140/400 21594098 8977993 140 400 2 130 Ø5 min (n x Rlat,k ; 62.4/kmod)
NP20/160/300 24176141 5650130 160 300 2 113 Ø5 min (n x Rlat,k ; 71.3/kmod)
NP20/160/400 21218326 5788246 160 400 2 150 Ø5 min (n x Rlat,k ; 71.3/kmod)
NP20/200/300 21594106 8978009 200 300 2 200 Ø5 min (n x Rlat,k ; 89.1/kmod)
NP20/200/400 - - 200 400 2 250 Ø5 min (n x Rlat,k ; 89.1/kmod)
NP20/350/40 24176166 1292251 350 40 2 34 Ø5 -
NP40/120 - - 40 120 1.5 9 Ø4.1 min (n x Rlat,k ; 14.2)
NP80/140 - - 80 140 1.5 25 Ø4.1 min (n x Rlat,k ; 28.3)
NP80/180 - - 80 180 1.5 32 Ø4.1 min (n x Rlat,k ; 28.3)
NP80/200 - - 80 200 1.5 35 Ø4.1 min (n x Rlat,k ; 28.3)
NP80/220 - - 80 220 1.5 39 Ø4.1 min (n x Rlat,k ; 28.3)
NP80/260 - - 80 260 1.5 46 Ø4.1 min (n x Rlat,k ; 28.3)
NP100/140 - - 100 140 1.5 32 Ø4.1 min (n x Rlat,k ; 35.4)
NP100/200 - - 100 200 1.5 45 Ø4.1 min (n x Rlat,k ; 35.4)
NP100/240 - - 100 240 1.5 54 Ø4.1 min (n x Rlat,k ; 35.4)
NP100/300 - - 100 300 1.5 68 Ø4.1 min (n x Rlat,k ; 35.4)
NP140/180 - - 140 180 1.5 59 Ø4.1 min (n x Rlat,k ; 49.6)
NP140/200 - - 140 200 1.5 65 Ø4.1 min (n x Rlat,k ; 49.6)
NP140/260 - - 140 260 1.5 85 Ø4.1 min (n x Rlat,k ; 49.6)
NP160/340 - - 160 340 1.5 128 Ø4.1 min (n x Rlat,k ; 56.7)
NP200/260 - - 200 260 1.5 124 Ø4.1 min (n x Rlat,k ; 70.8)
NP220/300 - - 220 300 1.5 158 Ø4.1 min (n x Rlat,k ; 77.9)
NP20/620/1240 - - 620 1240 2 - Ø5 -
NP25/620/1240 - - 620 1240 2.5 - Ø5 -
NP30/620/1240 - - 620 1240 3 - Ø5 -
NP20/100/220 - - 100 220 2 50 Ø5 min (n x Rlat,k ; 44.6/kmod)
NP20/120/220 - - 120 220 2 61 Ø5 min (n x Rlat,k ; 53.5/kmod)
NP20/80/180 - - 80 180 2 - Ø5 min (n x Rlat,k ; 35.6/kmod)

Installazione tipica

Fissaggi

  • Chiodi CNA Ø4.
  • Viti CSA Ø5.
NP hulplade 1.jpg
Fissaggio di travi in ​​legno e travi squadrate.





NP
Piastra di fissaggio perforata
