Technical data sheet

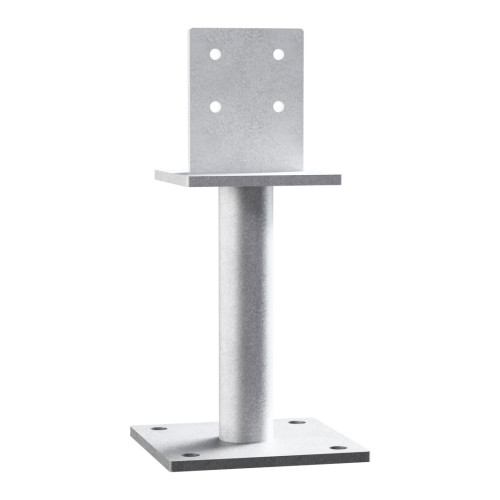

The PBH is suitable for heavy duty post support applications including Glulam timber posts,with a standoff height of 216mm. Dowels included.

PBH75 suitable for posts 75 x 75mm to 120 x 120mm
PBH120 suitable for posts 120 x 120mm to 200 x 200mm

Features

Material

Hot-dip galvanised mild steel plate

Benefits

Applications

Suitable On

When to Use

Technical Data

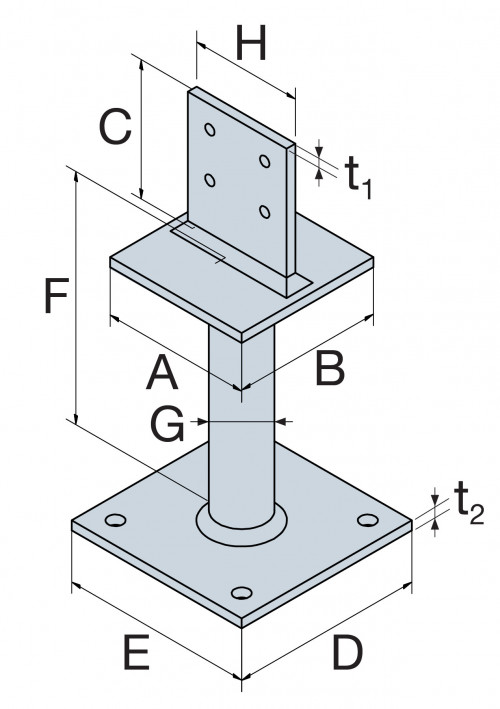

Product Dimensions

See full table online ➡️

References	Timber Post Size [mm]	Product Dimensions [mm]										Top plate holes	Bottom plate holes	Weight [kg]
References	Timber Post Size [mm]	A	B	C	D	E	F	G	H	t₁	t₂	Ø8,5	Ø14	Weight [kg]
PBH75	75x75 - 120x120	75	75	110	160	100	216	42.4	45	8	8	2	2	2.2
PBH120	120x120 - 200x200	120	120	110	155	155	216	42.4	90	8	8	4	4	3.6

Product characteristic capacities - Simplified values

See full table online ➡️

References	Simplified product capacities - Timber to Concrete
The published characteristic capacity is based on medium term load duration and service class 3 according to EC5 (EN 1995) ( k_mod = 0.7). For other load duration and service class, please refer to the ETA to get more accurate capacities. *Refer to the Simpson Strong-Tie anchor product range for suitable anchors. Typical anchor solutions depend on the concrete type, spacing and edge distances.
	Number of Fasteners				Simplified characteristic capacities - Timber C24 [kN]
	On post		On concrete		R_1.k^*	R_2.k			R_3.k			R_4.k
	Qty	Type	Qty	Type		Width of the post [mm]			Width of the post [mm]			Width of the post [mm]
	Qty	Type	Qty	Type		80	100	120	80	100	120	80	100	120
PBH75	4	STD Ø8	2	Ø12**	105.5	8.1	9.5	10.4	5.5	6.5	7.1	5.8	6.6	7.3
PBH120	4	STD Ø8	4	Ø12**	156.4	20.7	20.7	20.7	8.3	8.3	8.3	7.7	8.4	9.2

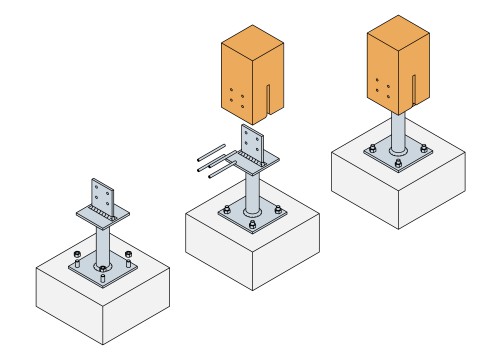

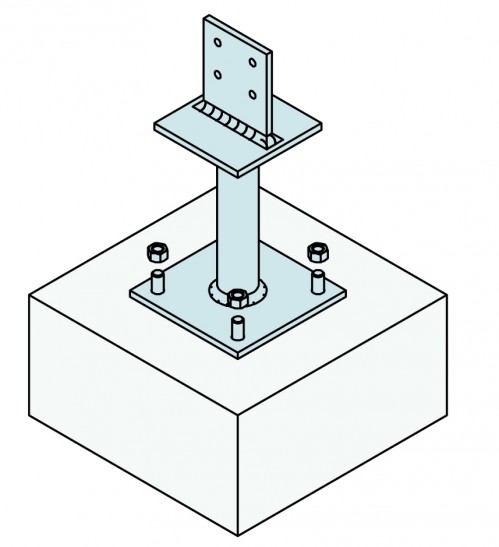

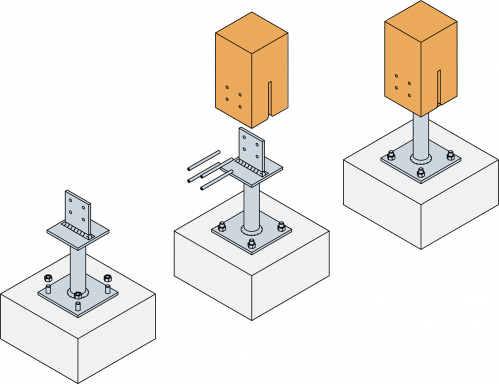

Installation

Timber install

Make a vertical notch in the base of the post
Mark out & drill dowel positions
Drill holes through the post with 8mm dia. bits

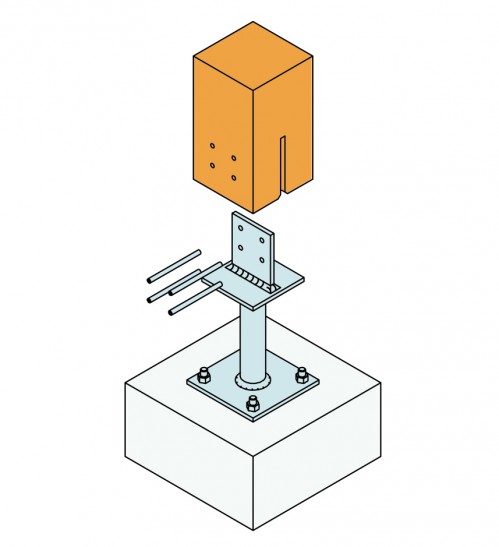

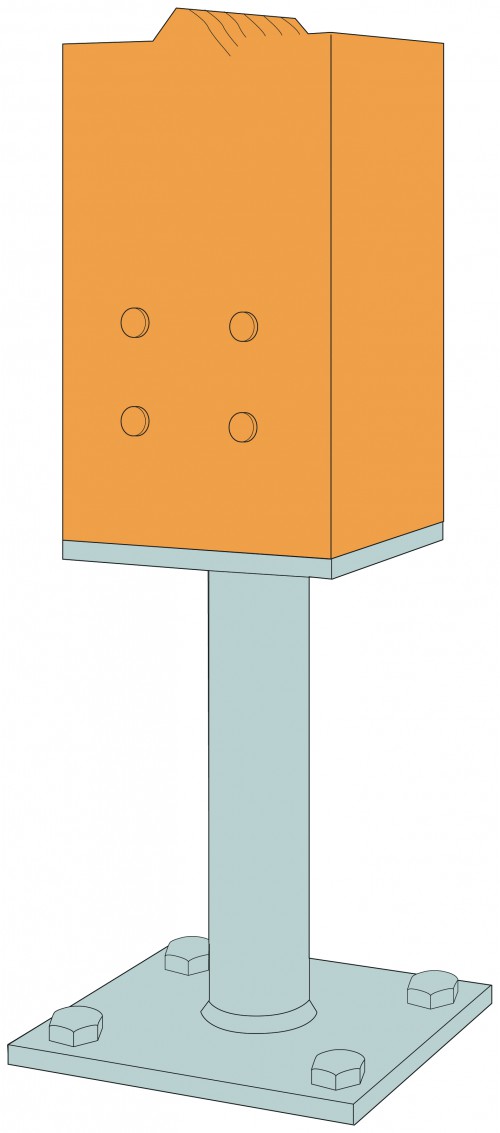

Position the post on the post base & insert pins

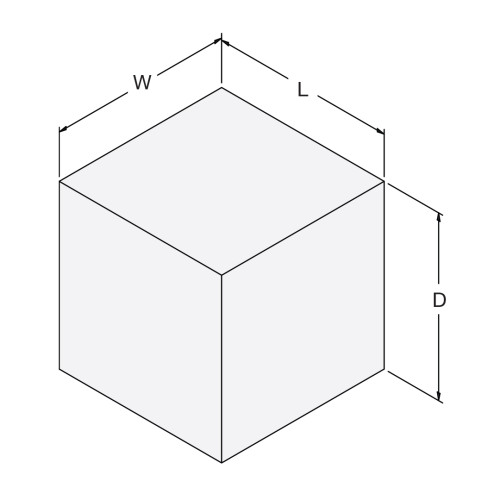

Concrete pad size WxLxD as advised in notes above
