Technical data sheet
H/L

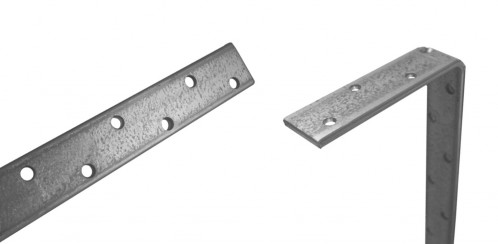

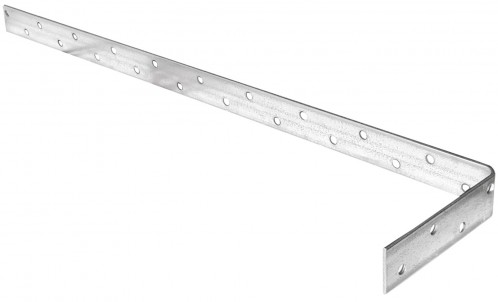

Heavy/Light Restraint Straps

The H and L straps are designed to The Building Regulations for
horizontal and vertical restraint.

  • Heavy restraint straps meet requirements for lateral restraint of roof trusses, rafters and joists tied into masonry walls.
  • Light restraint straps are designed for vertical loads such as wall plates on top of masonry walls.
  • All common sizes in stock from 500 to 2000mm long, 50mm increments. Longer lengths avaialble to order; contact technical support.

Features

Material

  • Pre-galvanised mild steel
  • Stainless steel straps are available, to order

Technical Data

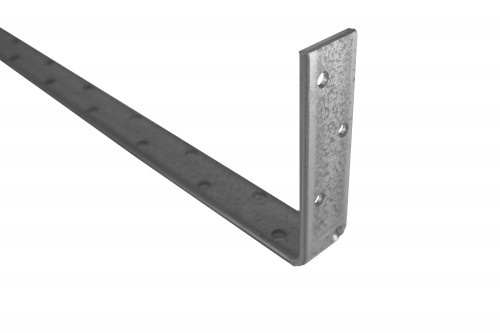

Common Bent Straps

References Installation Type Dimensions [mm] Holes
Overall Length [B] A B B1 t Total Flange B1
Ø6 Ø6
H06B10 Horizontal 600 28 600 100 4 23 3
H08B10 Horizontal 800 28 800 100 4 31 3
H10B10 Horizontal 1000 28 1000 100 4 39 3
H12B10 Horizontal 1200 28 1200 100 4 47 3
H15B10 Horizontal 1500 28 1500 100 4 59 3
H16B10 Horizontal 1600 28 1600 100 4 63 3
H06B15 Horizontal 600 28 600 150 4 23 5
H08B15 Horizontal 800 28 800 150 4 31 5
H10B15 Horizontal 1000 28 1000 150 4 39 5
H12B15 Horizontal 1200 28 1200 150 4 47 5
H15B15 Horizontal 1500 28 1500 150 4 59 5
H16B15 Horizontal 1600 28 1600 150 4 63 5
L06B10 Vertical 600 28 600 100 2 23 3
L08B10 Vertical 800 28 800 100 2 31 3
L10B10 Vertical 1000 28 1000 100 2 39 3
L12B10 Vertical 1200 28 1200 100 2 47 3

Common Twisted Straps

References Dimensions [mm] Holes
A B T1 t Total Flange B1
Ø6 Ø6

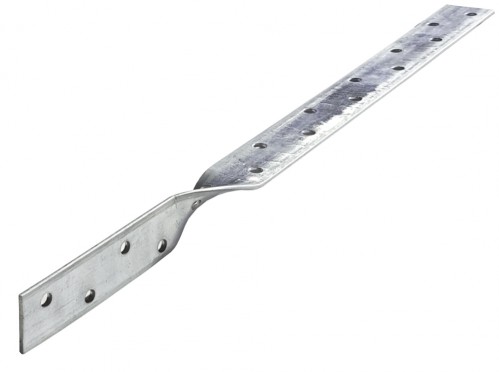

H06T15 28 600 150 4 22 6
H10T15 28 1000 150 4 38 6
L06T10 28 600 100 2 22 4
L10T10 28 1000 100 2 38 4
L12T10 28 1200 100 2 46 4
L12T15 28 1200 150 2 46 6

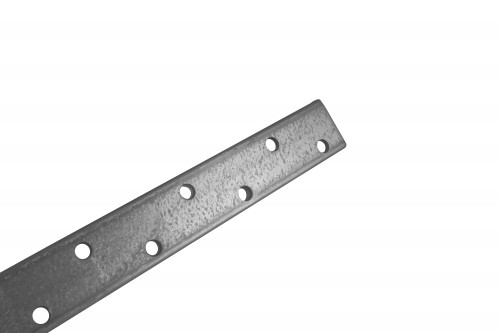

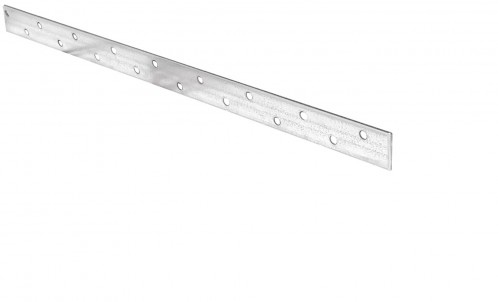

Common Flat Straps

References Dimensions [mm] Holes
Overall Length [B] A B t Total
Ø6
H10F00 1000 28 1000 4 40
H12F00 1200 28 1200 4 48
L10F00 1000 28 1000 2 40
L12F00 1200 28 1200 2 48

Performance Values

References Fasteners Characteristic Capacity [kN]
Masonry Wall Plate Floor Joist / Rafter
ø5.5x50 N3.75x30 N3.75x30
HxxBxx - 8 - 8
LxxBxx 5 - 3 4

Installation

Installation

  • Use all specified fasteners.
  • Horizontal lateral restraint straps should be spaced not more than 2m centres and attached to at least 3 timber members through the use of noggings and packing.
  • Attach to timber members using specified fasteners. The bend length should be a minimum of 100mm and should be positioned at the centre of an uncut block or brick.
  • Vertical restraint strapping should be at least 1m long.
  • Where straps are fixed to masonry, hardened nails Ø4mm x 75mm long or wood screws into plastic plugs Ø5.5 x 50mm long should be used. The lowest fixing should be located within 150mm of the bottom of the vertical strap.



Non standard straps are available to order.

  • To order: Specify model series, overall length, bend (B) dimension and/or twist (T) dimension.
  • Example: Heavy strap that has an overall length of 1m, a bend at 10cm and a twist at 20cm. (See illustration for detail on measuring bend & twist dimensions).
H 10 B10 T20

Strap

Type



Strap

Length (dm)

Bend

Length (cm)

Twist

Length (cm)

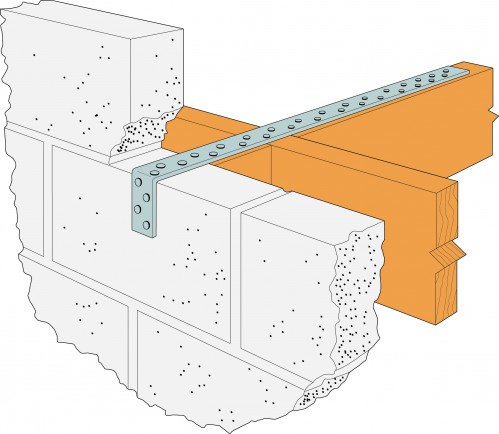

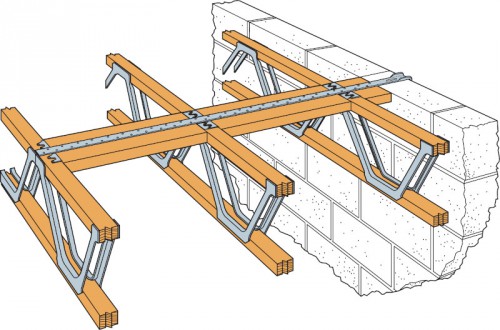

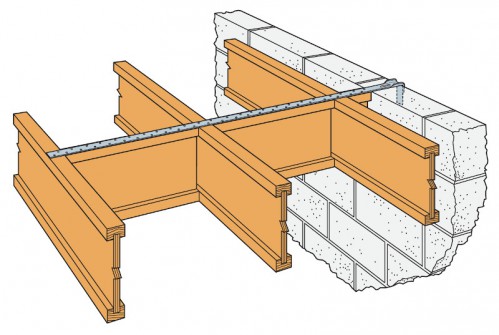

  • Horizontal lateral restraint straps should be spaced not more than 2m centres and attached to at least 3 timber members through the use of noggings and packing.
  • Attach to timber members using a minimum of 8 no. 3.75 x 30mm square twist nails. The bend length should be a minimum of 100mm and should be positioned at the centre of an uncut block or brick.
  • The downturn of strap is to be held tight against the cavity face of the inner leaf of blockwork.

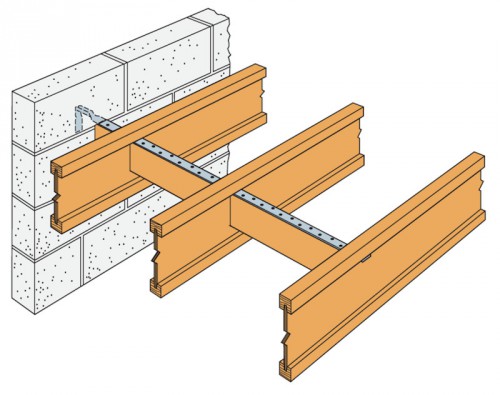

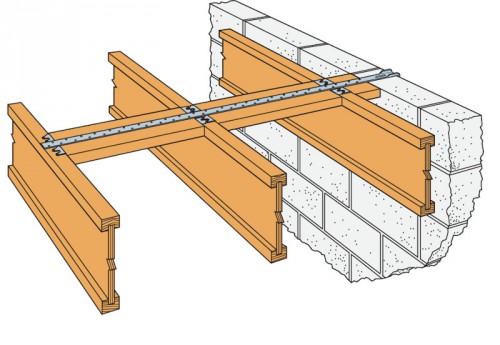

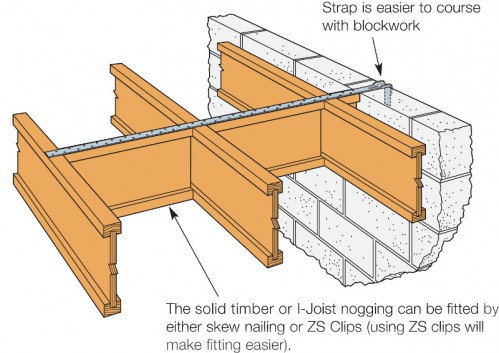

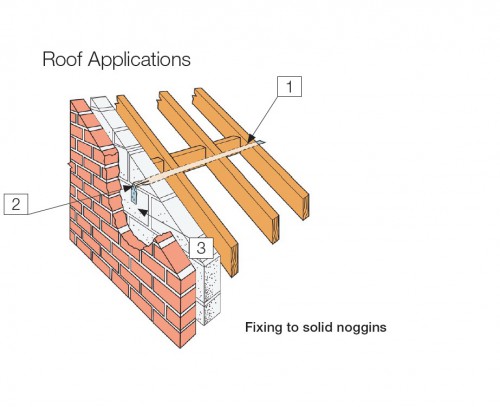

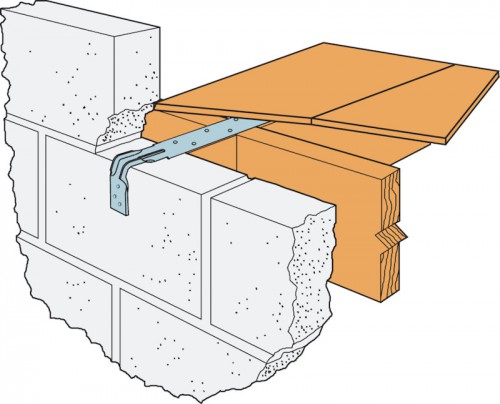

Fixing to solid noggings

  • Straps to be installed at not more than 2m centres (or 1.25m where appropriate) along pitch of gable end.
  • Ensure the position of the straps coincides with the block bed joint.
  • Install HES or H strap to underside of solid noggings. Noggings to be fixed horizontally to avoid twisting of the restraint straps. (1)
  • The downturn of strap is to be held tight against the cavity face of the inner leaf of blockwork (2), preferably located and bedded on a substantial piece of blockwork, i.e. over the centre of a full block, with a single cut block over the strap. (3)
  • Fix straps to noggings/trusses with eight 3.75 x 30mm square twist nails, evenly distributed along the length of the strap. (For NHBC warrantied buildings, in accordance with NHBC Standards 2017, section 7.2.8, four 50mm (minimum) x 4mm steel screws or four 75mm x 4mm round wire nails, with one fixing into the third rafter, shall be used instead of the square twist nails).
  • Strap to be of sufficient length to be fixed to a minimum of three trusses.

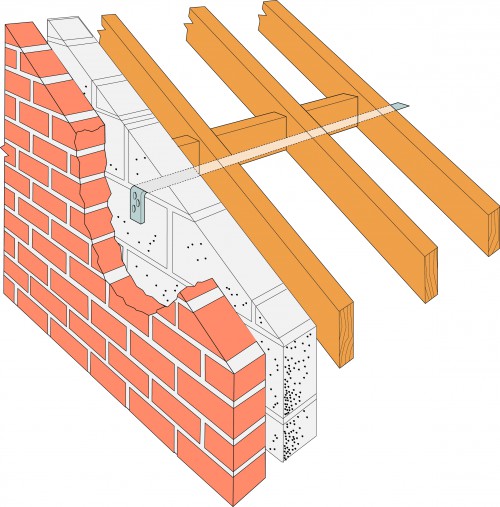

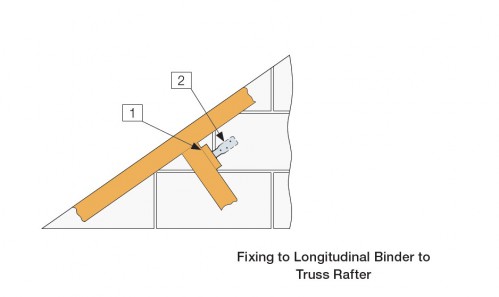

Fixing to longitudinal binder to truss rafter

  • Straps to be installed at not more than 2m centres (or 1.25m where appropriate) along pitch of gable end.
  • Install HES or H strap on the 25 x 100mm longitudinal Rafter bracing (1).
  • Where the position of the strap does not coincide with an existing longitudinal binder, and block bed joint, then the strap can be fixed to an additional 25 x 100mm binder. The binder is to be fixed over four trusses and nailed twice to each rafter with 3.35 x 65mm round wire nails.
  • Ensure the position of the additional binder and strap coincide with the block bed joint.
  • The downturn of strap is to be held tight against the cavity face of the inner leaf of blockwork (2), preferably located and bedded on a substantial piece of blockwork, i.e. over the centre of a full block, with a single cut block over the strap (3) (notch the block to accommodate the twist of the strap and ensure notch is fully mortared).
  • Fix straps to bracing with eight 3.75 x 30mm square twist nails, evenly distributed along the length of the strap (For NHBC warrantied buildings, in accordance with NHBC Standards 2017, section 7.2.8, eight 25mm x 4mm steel screws shall be used instead of the square twist nails).
  • Strap to be of sufficient length to be fixed to a minimum of three trusses.

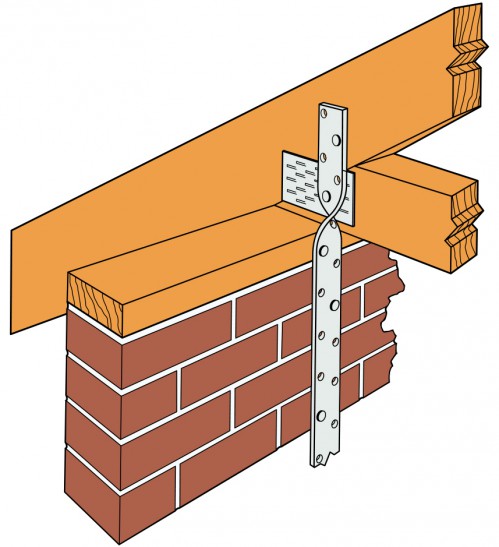

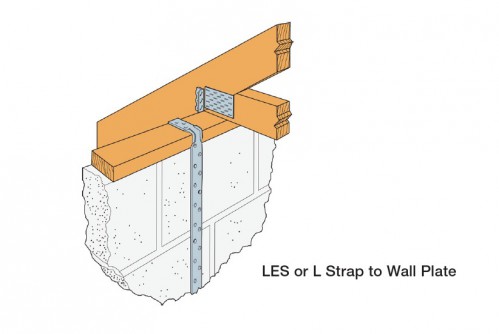

Vertical application

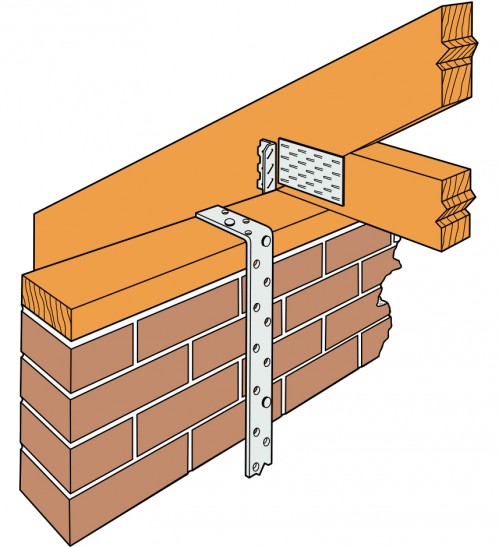

  • Fix LES or L strap to wall plate with 3 no. 3.75 x 30mm square twist nails and to masonry with 5 off dia. 5.5 x 50mm wood screws, plugged and screwed into masonry.
  • The lowest fixing should be located within 150mm of the bottom of the vertical strap.

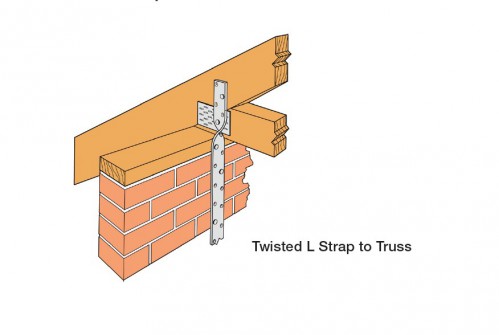

  • Where L strap is fixed to truss, install with 3.75 x 30mm square twist nails, quantity depending on required uplift values.
