Technical data sheet

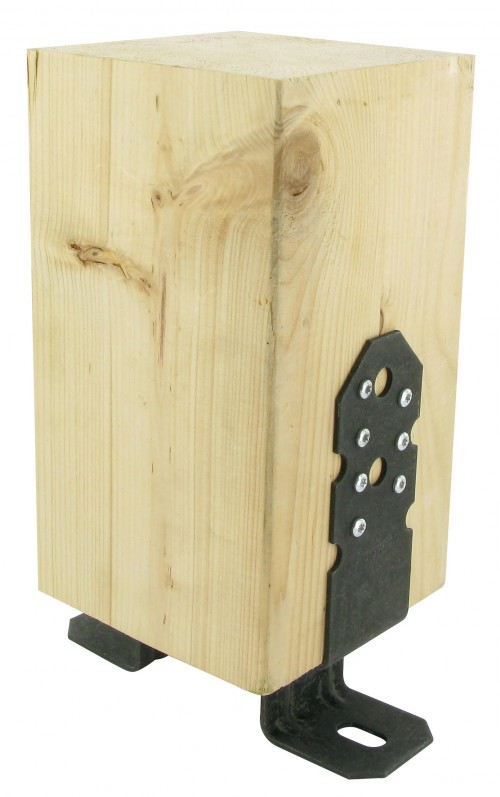

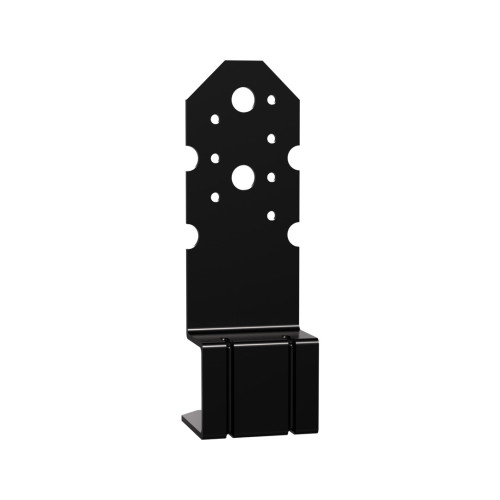

The PBP60/50 post base is most commonly use for pergola or porch type construction, but can be used in other situations.

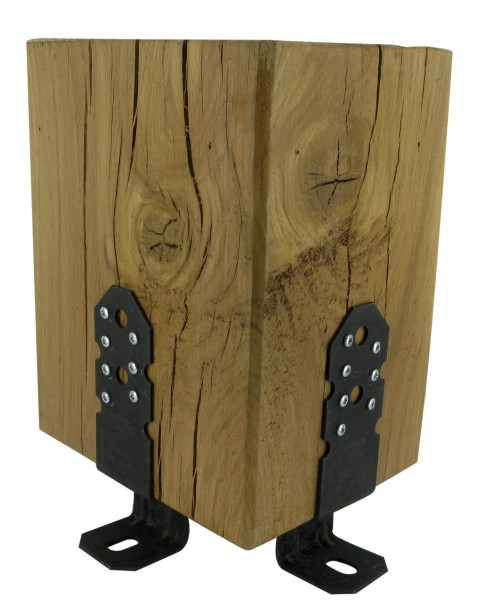

It should be used by pair for square timber sections from 70 to 150 mm. For higher square timber section (250x250 maximum), the use of 4 post base per post is advocated.

Features

Material

S235JR steel according to EN 10025,
Sherardized Class C30 according to EN ISO 17668

Benefits

Suitable for external use (Service class 3)
Can be used with diffferent section of post
Reduced distance between concrete support and ptimber post (50 mm)
Patented

Applications

Support

Support : Concrete
Post : Solid timber, composite timber, glulam

Application fields

Post for porch roof
post fro pergola

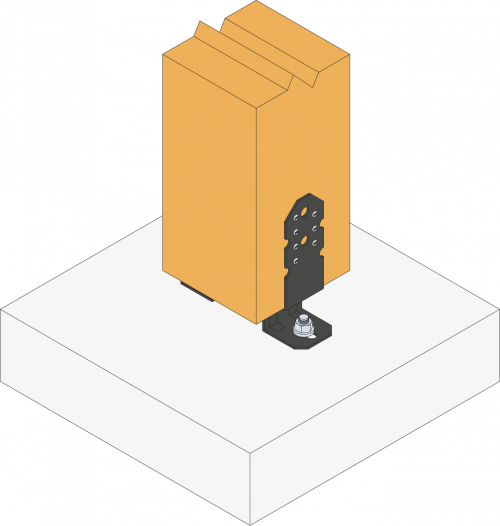

2 post bases - Timber section until 150x150 mm

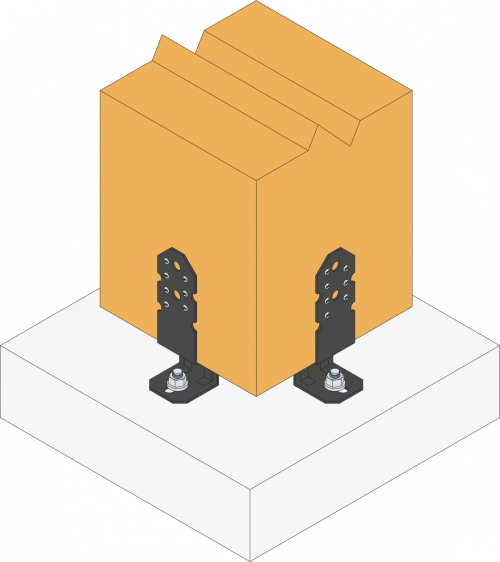

4 post bases - Timber section until 250x250 mm

Technical Data

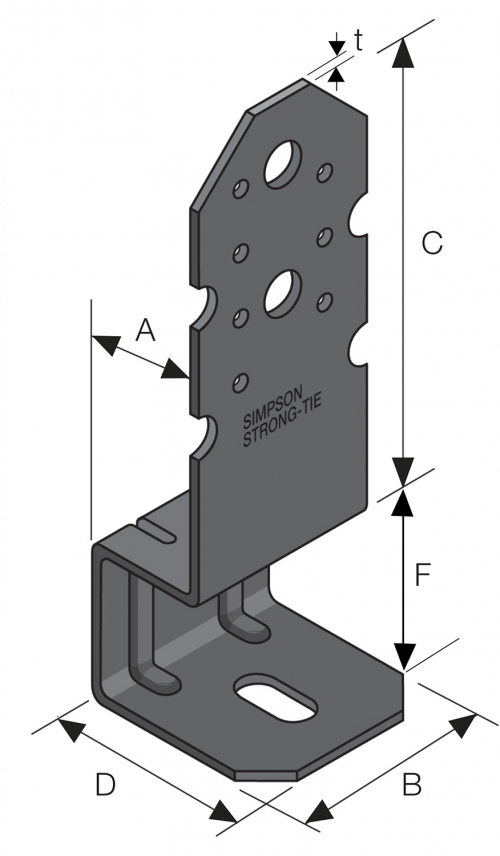

Product dimensions

See full table online ➡️

References	Product dimensions [mm]						Top plate holes		Bottom plate holes	Weight [kg]
References	A	B	C	D	F	t	Ø5	Ø13	Ø12x25	Weight [kg]
PBP60/50	35	60	140	62	49	3	7	2	1	0.36

Product simplified characterisic capacities - 2 post bases

C_U Post Base_Load direction_Ill_Instld_EU_FR_CY.jpg

Product simplified characterisic capacities - 2 post bases

See full table online ➡️

References	Product capacities - Timber to Concrete - 2 post bases
* The published characteristic capacity is based on medium term load duration and service class 3 according to EC5 (EN 1995) (k_mod= 0.65). For other load duration and service class, please refer to the ETA to get more accurate capacities ** Refer to the Simpson Strong-Tie anchor product range for suitable anchors. Typical anchor solutions are AT-HP, depending on the concrete type, spacing and edge distances.
	Fasteners				Characteristic capacities - Timber C24 [kN]
	On post		On concrete		R_1.k^*	R_2.k^*
	Qty	Type	Qty	Type	R_1.k^*	R_2.k^*
PBP60/50	4	Ø12	2	Ø10**	43	12.7

Product simplified characterisic capacities - 4 post bases

See full table online ➡️

References	Product capacities - Timber to Concrete - 4 post bases
* The published characteristic capacity is based on medium term load duration and service class 3 according to EC5 (EN 1995) (kmod = 0.7). For other load duration and service class, please refer to the ETA to get more accurate capacities ** Refer to the Simpson Strong-Tie anchor product range for suitable anchors. Typical anchor solutions are BOAXII, SET-XP, WA, AT-HP, depending on the concrete type, spacing and edge distances.
	Fasteners				Characteristic capacities - Timber C24 [kN]
	On post		On concrete		R_1.k*	R_2.k*
	Qty	Type	Qty	Type	R_1.k*	R_2.k*
PBP60/50	8	Ø12	4	Ø10**	96.9	12.7

Installation

Can be used with diffferent post sizes
50mm standoff
Order as separate item, use in pairs
Not recommended when the top of post/column is not restrained (e.g. fence post)
